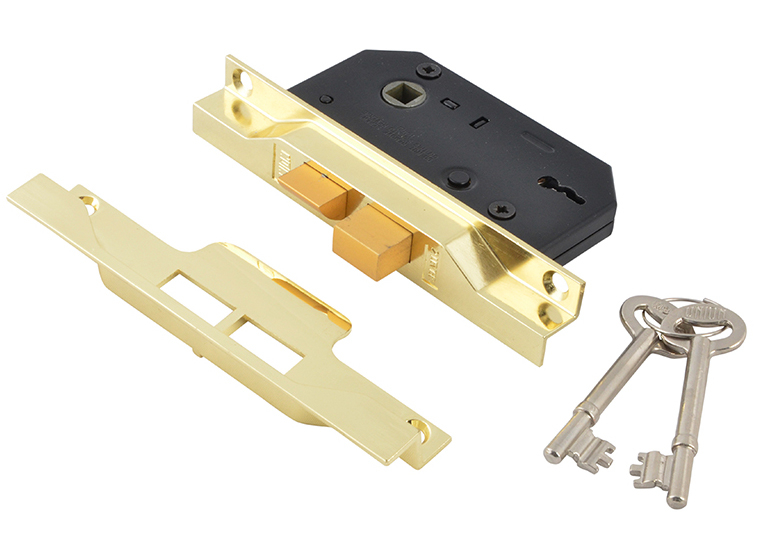

Union 2242 Rebated Mortice Lock

Size
Finish
Please select from the options above.
Quantity:
-
+



Application

  • For timber doors hinged on the left or right
  • Keys suitable for use on doors up to 54mm thick

Specification

  • Deadbolt locked or unlocked by key from either side
  • Latch bolt withdrawn by lever handle from either side
  • Easily reversible latch bolt
  • NB: Not suitable for master keying
  • Not suitable for bolt through fixings
  • Suitable for 12.5mm full rebated timber doors
  • Available with square forend and striking plate
  • Case Size: 65.5mm (2.5") or 78.5mm (3")
  • Backset: 44.5mm or 57mm
  • Case: Steel, black powder coat
  • Forend: Zinc, Silver or Electro-Brass
  • Striking Plate: Finished to match forend
  • Deadbolt: Aluminium
  • Latch Bolt: Aluminium
  • Follower: 8mm square
  • Rebate Kit: Fixed 12.5mm rebate
  • Supplied with 2 steel nickel plated keys
  •
  • Available in EB and SE finishes

Finish

  • EB - Electro Brass finish
  • SE - Silver Enamel finish
