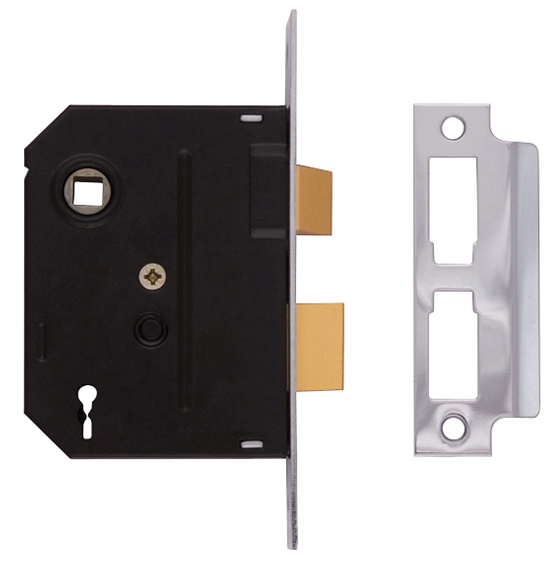

Union 2295 2 Lever Sashlock

Union 2295 2 Lever Sashlock

Size
Finish
Please select from the options above.
Quantity:
-
+



Application

  • For timber doors hinged on the left or right
  • Keys suitable for doors up to 54mm thick

Specification

  • Deadbolt locked or unlocked by key from either side
  • Latch bolt withdrawn by lever handle from either side
  • Reversible latch bolt
  • May be keyed alike with 2242
  • Two way action, suitable for lightweight knobs or sprung handles
  • NB: Not suitable for master keying
  • Not suitable for bolt through fixings
  • Available with square forend and locking plate
  • Case Size: 63mm (2.5") or 76mm (3")
  • Backset: 44.5mm or 57mm
  • Case: Steel, black powder coat
  • Forend: Chrome or brass finish
  • Striking Plate: Finished to match forend
  • Deadbolt: Aluminium
  • Latch Bolt: Aluminium
  • Follower: 8mm square
  • Keying Groups: May be supplied to pass, differ and keyed alike with 2242. Supplied with 2 zinc nickel plated keys
  • Key Blank Number: Key blanks not sold separately
  • Keying: 20 standard differs (M21H - M40H)
  • Available in CH and PL finishes

Finish

  • CH - Polished Chrome finish
  • PL - Polished Brass finish
