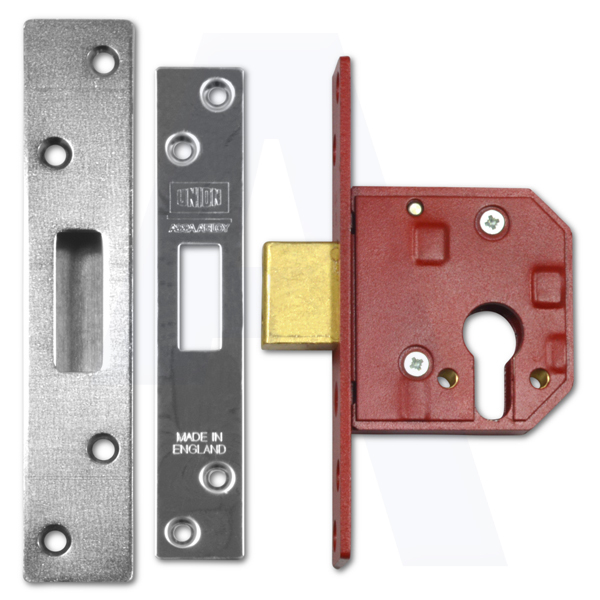

UNION L2144E Euro Deadcase 80mm Satin Chrome

Application

• For timber doors hinged on the left or right
• Also suitable for steel & composite doors - special fixings required
• Suitable for doors up to 54mm thick

Specification

• Deadbolt is locked or unlocked by cylinder key from either side
• Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
• Security box striking plate
• British Standard rated & Police preferred specification
• Case Size: 67mm (2.5") or 79.5mm (3")
• Backset: 45mm or 57.5mm
• Case: Steel, red powder coat
• Outer Forend: Stainless steel or brass
• Striking Plate: Finished to match forend,
• Deadbolt: Brass with hardened steel rollers
• Latch Bolt: n/a
• Follower: n/a
• Rebate Kit: 2958 (13mm, 19mm or 25mm)
• Cylinder Type: Euro profile, supplied with L212441E
• Keys: 3 steel nickel plated keys supplied as standard
• Key Blank Number: KB502 - 6-pin
• 212441E - BS 3621 : 2007 if supplied complete with case, cylinder and 53043 security rose
• L2144E - non-BS deadlock case
• Available in SC and PL finishes

Finish

• SC - Satin Chrome finish
• PL - Polished Brass finish

Standards

• 212441E tested to BS 3621 : 2007
• EN 1634-1 assessed for use on 60 minutes timber fire doors
• Kitemark only achieved if supplied complete with cylinder and security escutcheons
• EC Certificate number: 0832-CPD-6039 (212441E only)
