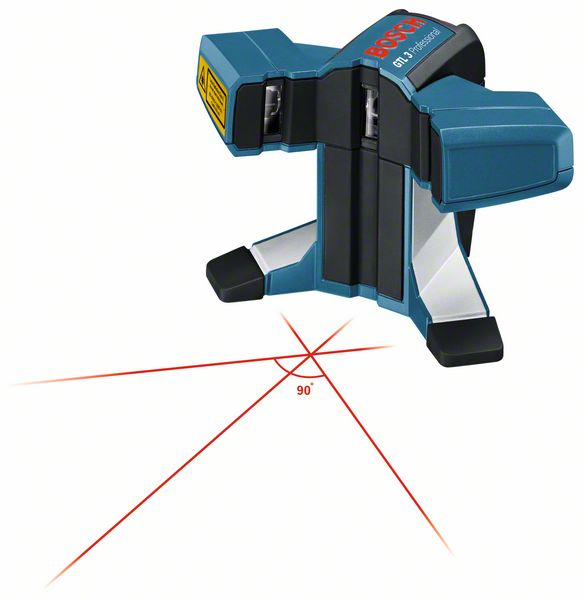

Bosch GTL3 Tile Laser

Stock Code: 1700073895V
Manufacturer Part No: 0601015200

Descriptions

Technical data

Laser diode	635 nm, < 1 mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range	20 m
Working range with target plate	20 m
Angular accuracy (between 0 – 90° angle)	± 0,2 mm/m
Dust and splash protection	IP 54
Power supply	4 x 1.5 V LR6 (AA)
Operating time (max.)	18 h in 2-line mode
Weight, approx.	0.5 kg
Projection	3 lines

Sales information

Positioning

Fast tile laying due to additional line at 45°

User benefit

In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
High accuracy of 0.2 mm/m
Compact and lightweight design for optimum ease of use

Other features

Alignment plate for better stability when working on uneven ground and for fixing to the wall
Clearly visible laser lines for indoor use
Dust and splash protected (IP54)
Automatic shutdown to reduce battery consumption
